Advantages

1. Greater heat resistance and recovery.

2. Higher axial stiffness allows operation at higher continuous torques or loads.

3. Better acceleration, higher top speeds, less speed ratio and energy loss.

4. Improved durability, crack and wear-resistance,and longer service life.

5. Made without chlorinated compounds.

Features

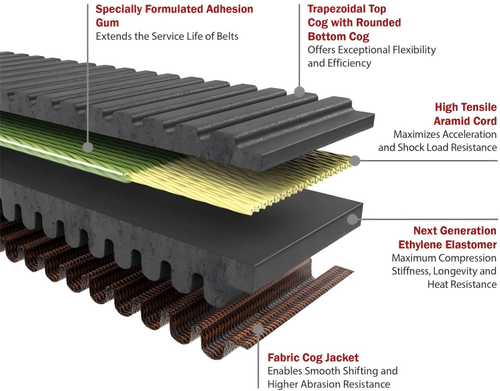

· Ethylene Elastomer compound meets the needs of larger SxS and high-horsepower ORVs in tough riding conditions.

· Next-generation EE compound offers higher load capacity, higher peak torque capacity, less "heat fade" and less speed loss.

· Delivers 75% greater dynamic axial stiffness, up to 50% lower speed losses and better recovery without power loss.

· Runs cooler, resists glazing for better recovery and reduced cracking.

· Belt life increased 100-300% versus aftermarket competitive belts.

· Reduced speed (rpm) loss by 50% under high loads and increased load capacity by >10% compared to other aftermarket belt.

Dimensions

Part #	Outside Circumference (inches)	Top Width (inches)	Weight (lbs.)
DT400	32-15/16	1-11/64	0.6
DT401	37-5/16	1-7/16	1.0
DT402	35-1/2	45/64	0.4
DT403	26-15/16	23/32	0.3
DT404	44	1-3/16	1.1
DT405	41-27/64	31/32	0.7
DT406	36-3/4	1-29/64	1.0
DT409	39-3/8	1-17/64	1.0
DT410	40-1/4	1-17/64	0.9
DT411	41-15/16	1-21/64	0.9
DT412	41	1-3/16	0.8
DT413	41	1-3/16	0.9
DT414	27-1/8	47/64	0.3
DT415	28-11/16	23/32	0.3
DT416	33-3/4	1-3/16	0.8
DT417	34-1/4	1-15/64	0.7
DT419	39-3/16	1-11/32	1.0
DT420	37-11/32	1-19/64	0.9
DT421	30-3/16	3/4	0.3
DT422	37-3/8	1-21/64	0.9
DT423	36-15/16	1-9/32	0.8
DT424	41-11/16	1-1/4	0.9
DT425	37-1/4	13/16	0.4
DT426	40-57/64	1-3/16	0.9
DT427	43-37/64	1-3/8	1.1
DT428	42-15/64	1-3/16	1.1
DT429	43-47/64	1-15/64	1.0
DT433	52-1/8	1-29/64	1.7
DT434	43-15/64	1-13/64	0.8
DT435	37-7/64	1-1/4	1.0
DT436	35-1/2	45/64	0.4
DT437	37-11/16	1-15/32	1.0
DT438	37-5/16	1-5/16	1.0
DT439	42-11/32	1-1/4	1.0
DT440	43-13/64	1-3/8	1.1
DT441	42-13/16	1-9/32	1.0
DT442	42-9/16	1-19/64	1.0
DT443	35-15/16	1-21/64	0.8
DT444	36-11/16	1-5/16	0.6
DT445	37-9/16	1-15/32	1.0
DT446	38-3/8	1-5/16	0.9
DT448	40	1-17/64	0.9
DT450	34-3/32	1-15/64	0.7
DT451	36-1/8	1-1/16	0.8
DT452	35-5/8	29/32	0.9
DT453	32-3/16	3/4	0.4
DT454	29-7/8	25/32	0.3
DT455	39-11/16	1-11/32	0.9
DT456	40-3/4	1-1/4	0.8
DT457	41-11/16	1-7/32	0.8
DT458	35-13/16	1-7/32	0.8
DT459	33-9/16	1-6/32	0.7
DT460	35-11/16	15/16	0.5
DT461	37-3/4	1-5/16	0.8
DT462	26-11/16	23/32	0.2
DT463	32-5/8	23/32	0.3
DT464	39-31/32	1-11/32	0.8
DT465	37-1/8	1-3/16	0.8
DT466	56-5/8	1-7/32	1.2
DT467	57	1-1/4	1.5
DT468	43-5/8	1-7/32	0.9
DT469	49-1/8	1-1/4	1.3
DT470	47-7/32	1-9/32	1.3
DT471	47-1/8	1-11/32	1.3
DT472	47-1/2	1-9/32	1.3
DT473	44-5/8	1-1/8	1.0
DT474	55-1/2	1-9/32	1.5
DT475	46-13/16	1-9/32	1.2
DT476	43-5/16	15/16	0.9
DT477	37-5/16	1-7/32	0.8
DT478	37-5/16	1-5/16	0.8
DT479	40-3/4	1-5/16	0.9
DT480	46-5/8	1-1/2	1.2
DT481	45	1-13/32	1.1
DT482	43-13/16	1-7/16	1.1
DT483	36-15/16	1-7/16	1.0
DT484	38-1/8	1-7/16	1.0
