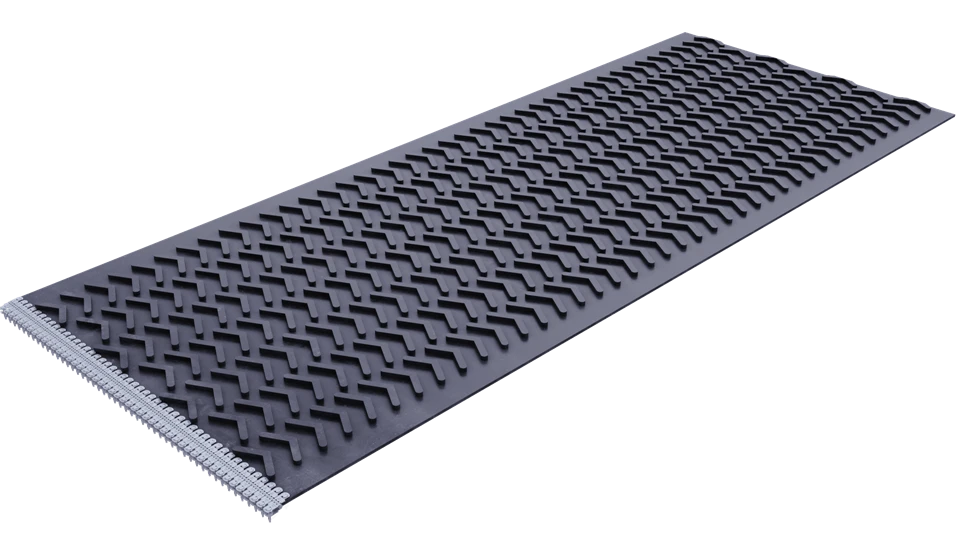

Pattern And Chevron Conveyor Belts
RoyalCorp Pattern and Chevron Conveyor Belts slope 0-45 to prevent materials from falling off and to improve the capability of the belt.
1. Material selection: cotton canvas, nylon canvas, or polyester canvas.
2. Category: herringbone pattern, column pattern.
3. Production width: 300-1000 mm; layers: 3-10 layers.
Category: There are common, heat-proof, acid- and alkali-resistant, and oil-resistant belts, categorized according to the characteristics of cover rubber.
Description
These belts are used when material has to be conveyed at steep angles without allowing slip back of the load.
Special features of RoyalCorp chevron belts are
-Integrally molded chevron cleats.
-Vast range of chevron designs possible.
-Variable cleat heights available, allowing you to match the belt as per your equipment specification.
- Short production time.
-Origin: China.
Details of available designs:
6" Multi V. Conveyor Belt:
Overlapping 6" molded cleats are ideal for aggressive transfer of free flowing material such as fertilizers, grains, sand, wood bark & chip .
1. Item: C15 P385, Open V
Profile height: 15 mm
Application: Wood chip & bark, fertilizers, grains and sand, quarry, coal, package and bag etc.
| C.H (mm) | C.W (mm) | C.P (mm) | B.W (mm) |
|---|---|---|---|
| 15 | 385 | 250 | 500~800 |
2. Item: C15 P600, Open V
Profile height: 15 mm
Application: Wood chip & bark, fertilizers, grains and sand, quarry, coal, package and bag etc.
| C.H (mm) | C.W (mm) | C.P (mm) | B.W (mm) |
|---|---|---|---|
| 15 | 600 | 250 | 650~1000 |
3. Item: C15 P750, Open V
Profile height: 15 mm
Application: Wood chip & bark, fertilizers, grains and sand, quarry, coal, package and bag etc.
| C.H (mm) | C.W (mm) | C.P (mm) | B.W (mm) |
|---|---|---|---|
| 15 | 750 | 250 | 800~1200 |
4. Item: C15 P450, Closed U
Profile height: 25 mm
Application: Wood chip & bark, fertilizers, grains and sand, quarry, coal, package and bag etc.
| C.H (mm) | C.W (mm) | C.P (mm) | B.W (mm) |
|---|---|---|---|
| 25 | 450 | 330 | 600~800 |
5. Item: C25 P550, Closed U
Profile height: 25 mm
Application: Wood chip & bark, fertilizers, grains and sand, quarry, coal, package and bag etc.
| C.H (mm) | C.W (mm) | C.P (mm) | B.W (mm) |
|---|---|---|---|
| 25 | 550 | 330 | 600~800 |
6. Item: C25 P750, Open U
Profile height: 25 mm
Application: Wood chip & bark, fertilizers, grains and sand, quarry, coal, package and bag etc.
| C.H (mm) | C.W (mm) | C.P (mm) | B.W (mm) |
|---|---|---|---|
| 25 | 750 | 330 | 1000~1200 |
