Advantages

1. Superior durability, resistant to intensive use in high-volume businesses.

2. Compact and efficient, reduces drive system costs.

3. Perfect fit ensures stable, vibration-free operation.

4. Quiet and efficient operation, improving the equipment's lifespan.

5. High flexibility, excellent oil, water and ozone resistance.

6. Linear belt speeds up to 60 m/s are possible.

7. Working temperature -15° / +60 ° C.

Application

· Food Processing Equipment (TB2 core usage)

Replacement drive belt for commercial meat slicer (Berkel, Sirman, Hobart, Globe slicing machine), drives cutter blade & feed roller; oil-resistant, washable against food sanitizer, OEM spare part for worldwide catering machinery.

· Precision light industry (JBT & TB2)

Textile looms, printing machine, wood sanders, treadmill motor drive; ultra-thin construction fits small pulley diameter, high-speed smooth running, compact transmission layout.

· Small Agricultural Machinery (JBT rubber version)

Mini seeder, lawn mower, small rotary tiller auxiliary drive, anti-dirt & anti-vibration for field harsh working environment.

· Small Home Appliances & Instruments

High-power blenders, industrial fans, precision testing instruments reduction drive.

Main components

01 / BODY
The belt body is made of thermoset polyurethane with 85 ± 5 ShA hardness.
The back side cushion protects the tensile member and permits the use of back side idlers.

02 / CORD
The tensile member consists of high-tension polyester cords, which combine the high flexibility of flat belts with the power transmission capability of V-belts while ensuring length stability.
Kevlar cords available on reqest.

Range

TYPE	T75	T108	T110
Fabric	Polyester	Polyester/Cotton	Polyester
Coating for drive or transport side	Neoprene rough	Neoprene rough	Neoprene rough
Coating revers side	Neoprene smooth	Neoprene smooth	Neoprene smooth
Colour(1)	Black	Black	Black
Antistatic	Yes	Yes	Yes

Coefficient of friction (μ)
· Coated side smooth	0,6	0,6	0,6
· Fabric side rough	0,5	0,5	0,5

Breaking strength (N) per cm width in endless form	1500	950	1750
Pretension (N) recommended per cm width in endless form	150	260	270
Elongation (%) at pretension recommended per cm	0,8	0,8	0,8
Minimum recommended pulley external diameter (mm)	6	10	15

Size (mm)(2)
· Length	200 - 3850	200 - 3850	200 – 3850
· Width (length <470 mm)	6 - 330	6 - 330	6 – 300
· Width (length >/= 470 - 600 mm)	6 - 430	6 - 430	6 – 430
· Width (length >600 - 750 mm)	6 - 430	6 – 430	6 – 430
· Width (length >750 mm)	6 - 430	6 - 430	6 – 430
· Thickness	0,5	0,65	0,9

Cross Sections and Dimensions

2-1

cross-section dimension		JT	JBT	HB
rib pitch	P (mm)	2.34	2.4	1.6
rib angle theta	(degree)	40	40	40
thickness	H (mm)	1.8	1.8	1
thickness of rib bottom	T (mm)	1.7	1.7	1.5
total thickness	H+T (mm)	3.5	3.5	2.5
belt width	W (mm)	defined with respect to each rib number

2-2 2-3

Table 1:table of JBT shape standard belt size

rib number	Name	pitch length (mm)
	82	208
	84	213
	87	221
	89	226
	90	228
	97	245
	100	254
	102	258
	115	295
three ribs	123	312
four ribs	125	318
five ribs	130	333
six ribs	135	343
	175	445
	179	455
	180	457
	212	538
	226	573
	229	582
	235	587
	245	622
	247	627
	337	656

●Inquire us when you want to use JI shape,HB Shape,and rib numbers unlisted.

Table 2:correction factor of contact angle (Ktheta)

Dp-dp/C	contact angle theta of small pulley (degree)	correction factor Ktheta
0.00	180	1.00
0.10	174	0.99
0.20	169	0.97
0.30	163	0.96
0.40	157	0.94

0.50	151	0.93
0.60	145	0.91
0.70	139	0.89
0.80	133	0.87
0.90	127	0.85

1.00	120	0.82
1.10	113	0.80
1.20	106	0.77
1.30	99	0.73
1.40	91	0.70

1.50	83	0.65

Table 3:the difference between pitch diameter and outer diameter of pulley

	2a
JT,JBT	0.78mm
HB	0.51mm

pulley pitch diameter = pulley outer diameter + 2a

→( refer p.24,table25 for 2a)

Table 4:correction factor of length (Kl)

pitch length (mm)	correction factor of length
~245	0.90
250~360	1.00
370~520	1.08
530~740	1.15
greater than or equal to 750	1.20

Belt Data

BELT CODE
Width n° of ribs	Type	Length [mm]
6	TB2	330
8	J	406
10	H	1120


Standard Lengths [mm]	Standard Lengths [mm]	Standard Lengths [mm]
156	271	178
170	275	223
200	278	227
220	283	229
231	288	295
248	304	340
266	330	375
295	345	507
310	356	588
327	381	602
330	392	609
345	406	650
360	431	768
380	444	935
400	457	1000
430	483	1086
480	508	1120
510	558	1163
526	610	1203
535	660	1240
598	681	1775
630	711
660	762
675	864
725	914
770	953
1186	1010
	1086
	1120
	1163
	1202
	1239
	1245
	1268
	1397

4JBT-262103JBT 6

Hot Tags: multi-groove belt / meat slicer belt with multi-wedge belt / megarib polyurethane poly v-belt, China, suppliers, manufacturers, factory, customized, wholesale, buy, low price, for sale

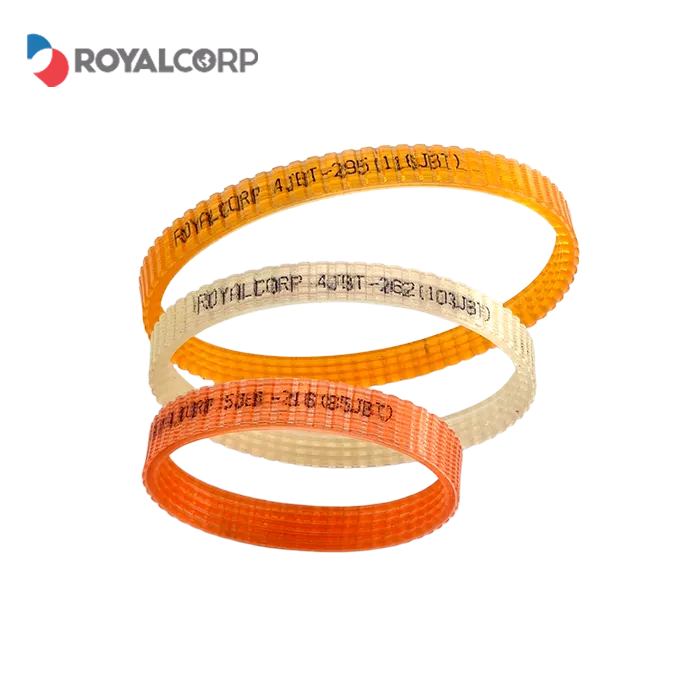

Multi-groove Belt / Meat Slicer Belt With Multi-Wedge Belt / Megarib Polyurethane Poly V-Belt
